Probably you want to read this first: What is MySQL and what is a relational database?

You can use this App Inventor example together with a php script on your web server to query your MySQL database on your web server.

Shival Wolf already provided a nice App Inventor Classic - MySQL interface. I now "translated" his example into App Inventor 2 with a few adjustments. Example queries by James.

Setup

• Put the PHP code on your web server
• Set the SQLKEY in your app and in the PHP code, they must match for this code to work
  Note: If you want to use special characters in the password string, then do not UriEncode the SQLKEY, see also here.
• Setup your database connection information in the php script
• Try out the code

Special Notes

• Returns HTTP code 200 for a successful SELECT query
• Returns HTTP code 201 to return anything that's not a SELECT statement
• Returns HTTP code 400 for any error with your SQL or setup
• Make sure to remove any page redirects for mobile devices on your webpage, else the App Inventor app will not be able to access the php script and will get an 404 error: page not found instead.

App Inventor blocks

Please see here for the SQL syntax.

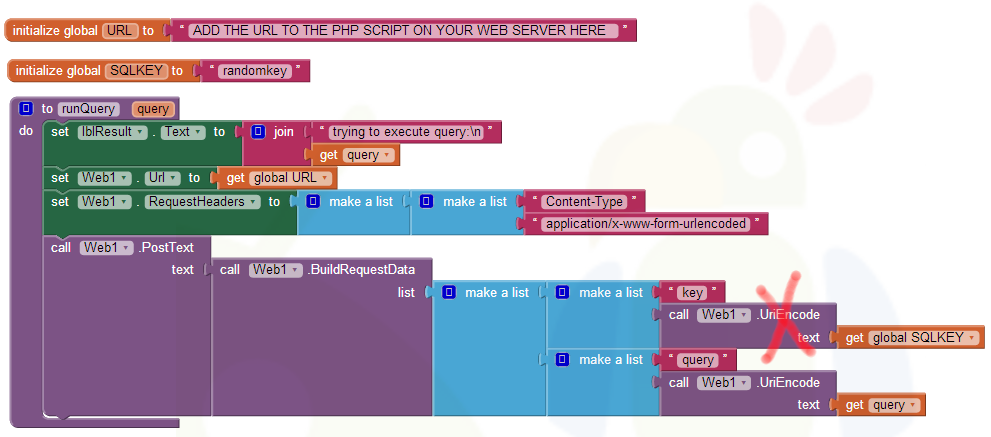

Run Query

Response Received

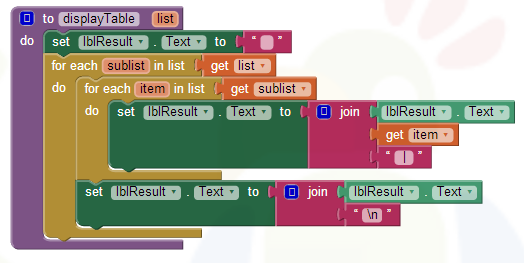

Display Table

To display the result table, I'm using 2 nested for each loops. In case you are interested in a nicer and more flexible solution, take a look at my dynamic table layout example.

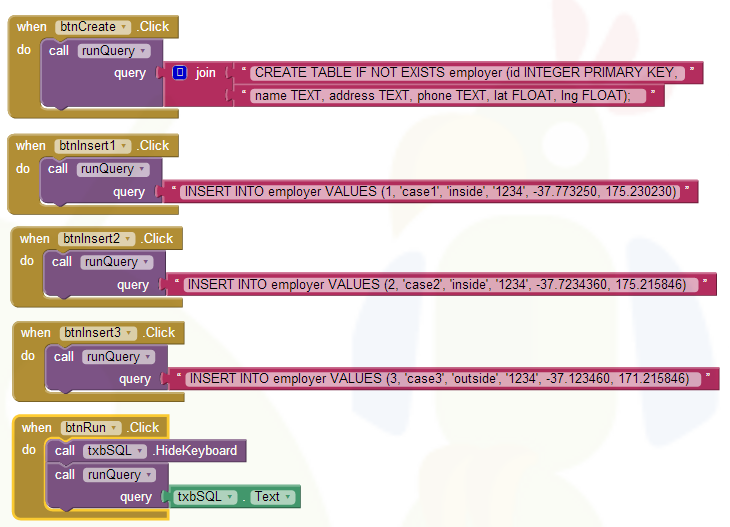

Queries

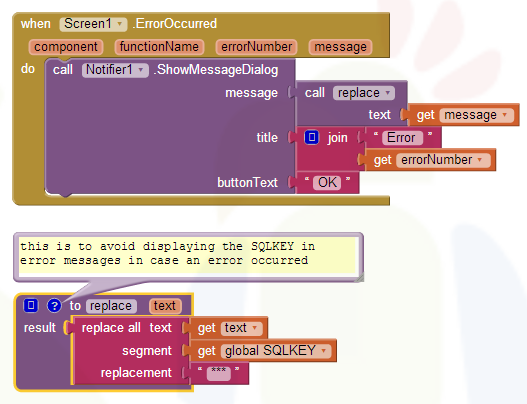

Further blocks used

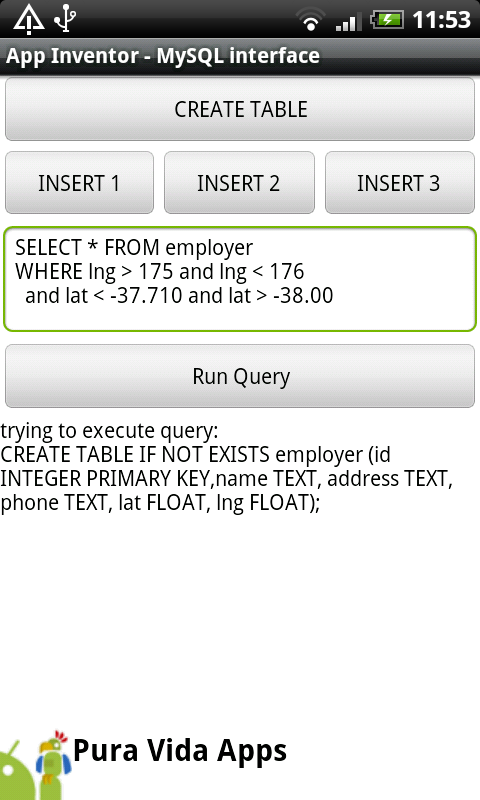

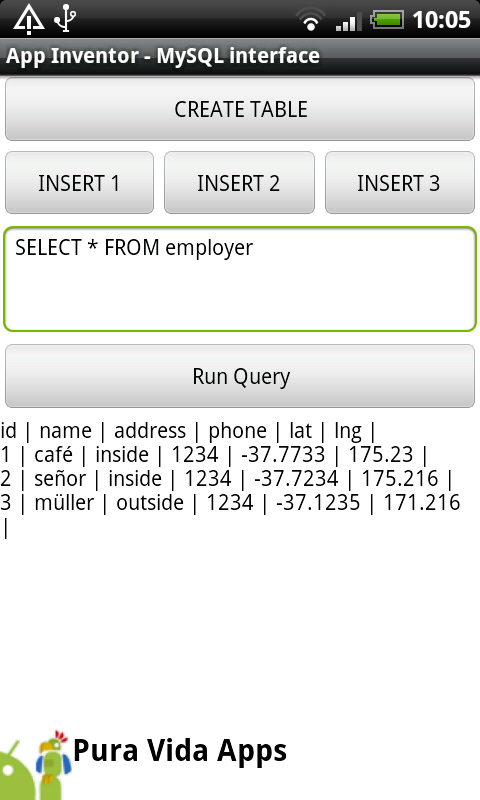

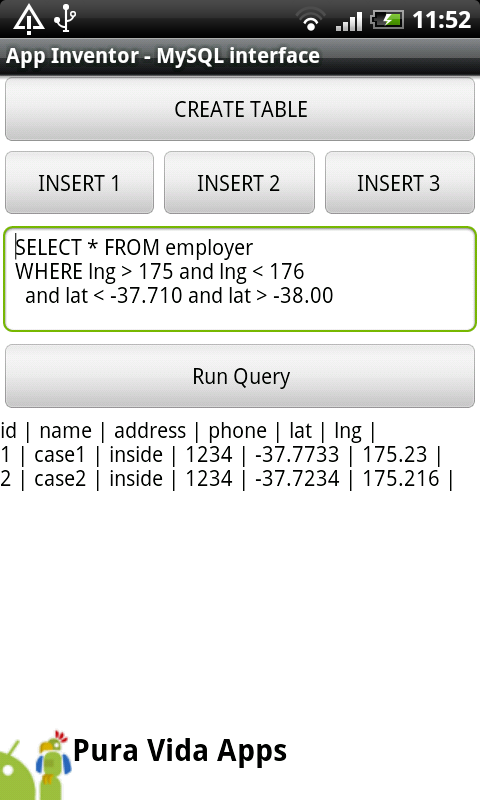

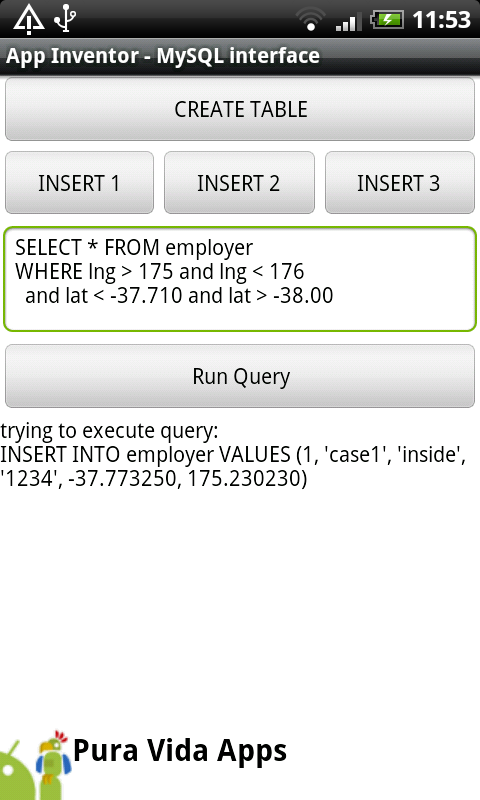

Screenshots

PHP Script

I replaced the deprecated original php MySQL API by the php MySQL Improved Extension. However, as the example is designed, this update still will not prevent from SQL Injection attacks, because all queries coming from App Inventor will be executed. You will have to use prepared statements or stored procedures to be on the safe side. See also: SQL Injection Prevention Sheet or do a Google Search do find more about SQL Injections. Also it is recommended to do at least some data validation on the App Inventor side.


Comic provided by xkcd.com. Thank you.

<?php
/*
 * Written By: ShivalWolf
 * Date: 2011/06/03
 * Contact: Shivalwolf@domwolf.net
 *
 * UPDATE 2011/04/05
 * The code now returns a real error message on a bad query with the mysql error number and its error message
 * checks for magic_quotes being enabled and strips slashes if it is. Its best to disable magic quotes still.
 * Checks to make sure the submitted form is a x-www-form-urlencode just so people dont screw with a browser access or atleast try to
 * Forces the output filename to be JSON to conform with standards
 *
 * UPDATE 2011/06/03: Code updated to use the Web Module instead of tinywebdb
 *
 * UPDATE 2013/12/26: minor modifications by Taifun
 *
 * UPDATE 2014/07/11: mysql API (deprecated) replaced by mysqli by Taifun
 *
 * UPDATE 2015/04/30: SELECT logic adjusted (result stored in temp. file removed) by Taifun
 *
 * UPDATE 2016/02/21: Bugfix Undefined variable: csv by Taifun
 *
 * UPDATE 2024-04-24: php 8 error handling update by Taifun
 */

/************************************CONFIG****************************************/
//DATABSE DETAILS//
$DB_ADDRESS="";
$DB_USER="";
$DB_PASS="";
$DB_NAME="";

//SETTINGS//
//This code is something you set in the APP so random people cant use it.
$SQLKEY="secret";

/************************************CONFIG****************************************/

//these are just in case setting headers forcing it to always expire
header('Cache-Control: no-cache, must-revalidate');

error_log(print_r($_POST,TRUE));

if( isset($_POST['query']) && isset($_POST['key']) ){                                   //checks if the tag post is there and if its been a proper form post
  //set content type to CSV (to be set here to be able to access this page also with a browser)
  header('Content-type: text/csv');

  if($_POST['key']==$SQLKEY){                                                           //validates the SQL key
    $query=urldecode($_POST['query']);

    try {
      $conn = new mysqli($DB_ADDRESS,$DB_USER,$DB_PASS,$DB_NAME);                       //connect

      try {
        $result=$conn->query($query);                                                   //runs the posted query

        if (strlen(stristr($query,"SELECT"))>0) {                                       //tests if it's a SELECT statement
          $csv = '';                                                                    // bug fix Undefined variable: csv
          while ($fieldinfo = $result->fetch_field()) {
            $csv .= $fieldinfo->name.",";
          }
          $csv = rtrim($csv, ",")."\n";
          echo $csv;                                                                    //prints header row
          $csv = '';

          $result->data_seek(0);
          while($row = $result->fetch_assoc()){
            foreach ($row as $key => $value) {
              $csv .= $value.",";
            }
            $csv = rtrim($csv, ",")."\n";
          }
          echo $csv;                                                                    //prints all data rows
        } else {
          header("HTTP/1.0 201 Rows");
          echo "AFFECTED ROWS: " . $conn->affected_rows;       //if the query is anything but a SELECT, it will return the number of affected rows
        }
      } catch (mysqli_sql_exception $e) {
        header("HTTP/1.0 400 Bad Request");                                             //sends back a bad request error
        echo "SQL statement: " . $query . "; Error: " . $e->getMessage();              // errors if the query is bad and spits the error back to the client
      }
      $conn->close();                                                                   //closes the DB

    } catch (mysqli_sql_exception $e) {
      header("HTTP/1.0 400 Bad Request");                                               //sends back a bad request error
      echo "Error connecting database: " . $e->getMessage();
    }
  } else {
     header("HTTP/1.0 400 Bad Request");
     echo "Bad Request, Error code 02";                                                 //reports if the secret key was bad
  }
} else {
  header("HTTP/1.0 400 Bad Request");
  echo "Bad Request, Error code 01";
}
?>

How to prevent mysql injection see this tutorial by Azeez Ibrahim

Test

Tested successfully on HTC Desire running Android 2.2, Samsung Galaxy Tab 10.1N running Android 3.2 and Nexus 5 running Android 4.4.4.

Notes

You also might be interested in the video tutorial Connect App Inventor to MySQL Database by Derek Banas.

Questions and Answers

Q1: The instructions say to add the php file to my webserver. Do I just place it in the public directory anywhere?
A: Just put it in a directory which is accessible for everyone.

Q2: Also do I need to enable remote access and add my own domain?
A: See the setup instructions.

Q4: I installed my mysql server online and when trying your app im getting the following error: Cannot parse text argument to "list from csv table" as a CSV-formatted table. Note: You will not see another error reported for 5 seconds.
A: The list from csv table block is used in the Web1.GotText event. As a test replace the blocks in the then part of the if-then-else statement by
to find out what is going on...

Q5: How can I use INSERT ... FROM SELECT ... statements?
A: See Alex_Mei's solution here. Thank you Alex_Mei.

Q6: I get this response content after trying to send a query to the database: This site requires Javascript to work, please enable Javascript in your browser or use a browser with Javascript support What can I do?
A: Some free web hosts only offer website hosting, not an API/data storage hosting, see also this thread here. Thank you Juan Antonio!

Download

Download aia file for App Inventor
Find the Kodular version here...Thank you Dora!
Download php script for your web server
