App Inventor Extensions

Headset Plug Status Extension

See the App Inventor Extensions document about how to use an App Inventor Extension.

For questions about this extension or bug reports please start a new thread in the App Inventor community. Thank you.

For feature requests please contact me by email. To be a sponsor of a new method already is possible starting from only 10 USD! With your contribution you will help the complete App Inventor community. Thank you.

Feb 15th, 2018: Version 1: initial release

Description

Extension to get the headset plug status (unplugged, plugged or unknown).
Required permissions: android.permission.MODIFY_AUDIO_SETTINGS
Thank you Caleb for being the sponsor of this extension!

Properties

Returns the headset plug status. Possible values are: unplugged, plugged or unknown.

Events

Event indicating that headset plug status changed. Possible values are: unplugged, plugged or unknown.

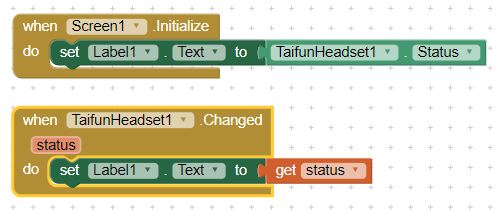

Example App: Headset Status Test

Test

Tested successfully on Nexus 5X running Android 8.1.

Java source code

// -*- mode: java; c-basic-offset: 2; -*-
package com.puravidaapps;
// Version 1: initial version


import android.app.Activity;
import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.content.IntentFilter;
import android.media.AudioManager;
import android.util.Log;

import com.google.appinventor.components.annotations.DesignerComponent;
import com.google.appinventor.components.annotations.DesignerProperty;
import com.google.appinventor.components.annotations.PropertyCategory;
import com.google.appinventor.components.annotations.SimpleEvent;
import com.google.appinventor.components.annotations.SimpleFunction;
import com.google.appinventor.components.annotations.SimpleObject;
import com.google.appinventor.components.annotations.SimpleProperty;
import com.google.appinventor.components.annotations.UsesPermissions;
import com.google.appinventor.components.common.ComponentCategory;
import com.google.appinventor.components.runtime.*;


@DesignerComponent(version = TaifunHeadset.VERSION,
    description = "Headset extension. " +
        "Version 1 as of 2018-02-15 for App Inventor version version nb166 and Companion version 2.66.",
    category = ComponentCategory.EXTENSION,
    nonVisible = true,
    iconName = "https://puravidaapps.com/images/taifun16.png",
    helpUrl = "https://puravidaapps.com/headset.php")
@SimpleObject(external = true)
@UsesPermissions(permissionNames = "android.permission.MODIFY_AUDIO_SETTINGS")

public class TaifunHeadset extends AndroidNonvisibleComponent implements Component,
      OnResumeListener, OnStopListener, OnDestroyListener {

  public static final int VERSION = 1;
  private ComponentContainer container;
  private Context context;
  private final Activity activity;
  private static final String LOG_TAG = "TaifunHeadset";
  private boolean listening = false;
  private String status = "unknown";


  public TaifunHeadset(ComponentContainer container) {
    super(container.$form());
    this.container = container;
    context = (Context) container.$context();
    activity = (Activity) container.$context();
    startListeningAudio();
    Log.d(LOG_TAG, "TaifunHeadset Created" );
  }


  private void startListeningAudio() {
    if (!listening) {
      IntentFilter filter = new IntentFilter(Intent.ACTION_HEADSET_PLUG);
      activity.registerReceiver(myReceiver, filter);
      listening = true;
    }
  }


  private void stopListeningAudio() {
    if (listening) {
      // Unregister broadcast listener
      activity.unregisterReceiver(myReceiver);;
      listening = false;
    }
  }

  /**
   * Returns the headset plug status (READ ONLY)
   * http://stackoverflow.com/a/16395163/1545993
   */
  @SuppressWarnings("deprecation")
  @SimpleProperty(category = PropertyCategory.BEHAVIOR,
      description = "Returns the headset plug status. Possible values are: unplugged, plugged or unknown.")
  public String Status() {
    Log.d(LOG_TAG, "Status: " + status);
    if (status.equals("unknown")) {
      AudioManager am = (AudioManager)context.getSystemService(Context.AUDIO_SERVICE);
      return am.isWiredHeadsetOn() ? "plugged" : "unplugged";
    } else {
      return status;
    }
  }


  // https://stackoverflow.com/a/13610712/1545993
  private final BroadcastReceiver myReceiver = new BroadcastReceiver() {
    @Override
    public void onReceive(Context context, Intent intent) {
      if (intent.getAction().equals(Intent.ACTION_HEADSET_PLUG)) {
        int state = intent.getIntExtra("state", -1);
        switch (state) {
          case 0:
            status = "unplugged";
            break;
          case 1:
            status = "plugged";
            break;
          default:
            status = "unknown";
        }
        Changed(status);
      }
    }
  };


  /**
   * Headset Plug Changed event handler.
   */
  @SimpleEvent (description = "Event indicating that headset plug changed.")
  public void Changed(String status) {
    Log.d(LOG_TAG, "Changed: " + status);
    EventDispatcher.dispatchEvent(this, "Changed", status);
  }

  @Override
  public void onDestroy() {
    Log.i(LOG_TAG, "onDestroy");  // event does not fire!
    stopListeningAudio();
  }

  @Override
  public void onStop() {
    stopListeningAudio();
  }

  @Override
  public void onResume() {
    startListeningAudio();
  }

}

Terms and Conditions

• Have fun and use this extension in your App Inventor projects! Pura Vida!
• THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
• This is is the only authorized place to download this extension. It is not allowed to host this extension somewhere else and offer it for others to download, be it on another website or market place or similar. The reason is, everybody should be able to have the opportunity to donate something in case you like my work. You are allowed to provide a link to this site, so others can download the extension here. You will find the most up to date version always here including documentation and usage examples. Thank you for your kind understanding.

Download

Download Headset extension (aix file)
Download Headset Status Test (aia file)
