App Inventor and embedded HTML/JavaScript


App Inventor is no lame duck in calculations anymore!

Improved version, see also this thread.

Let's do a math puzzle, for example this one from Fun With Num3ers. I will repeat the puzzle here:

        Find a 4-digit Num3er   abcd   such that

        (1)   a + b   =   c + d
        the sum of the first two digits is equal to that of the last two digits.

        (2)   a + d   =   c
        The sum of the first and last digits is equal to the third digit.

        (3)   b + d   =   2 * (a + c)
        the sum of the second and fourth digits is twice the sum of the other two digits.


Try to solve that with App Inventor only! How many minutes do you have to wait to get a result? Now take a look at the embedded HTML/Javascript solution and you will see, that it takes less than 1 second to do the calculation!

The HTML file math.html is uploaded as asset to App Inventor.

There is one special thing to consider for HTML documents uploaded as assets into App Inventor: During development, you have to use the development path to the embedded HTML document.

file:///mnt/sdcard/AppInventor/assets/math.html


Before packaging the app, use the production path.

file:///android_asset/math.html


The tools extension offers the method PathToAssets which always returns the correct path to the assets.

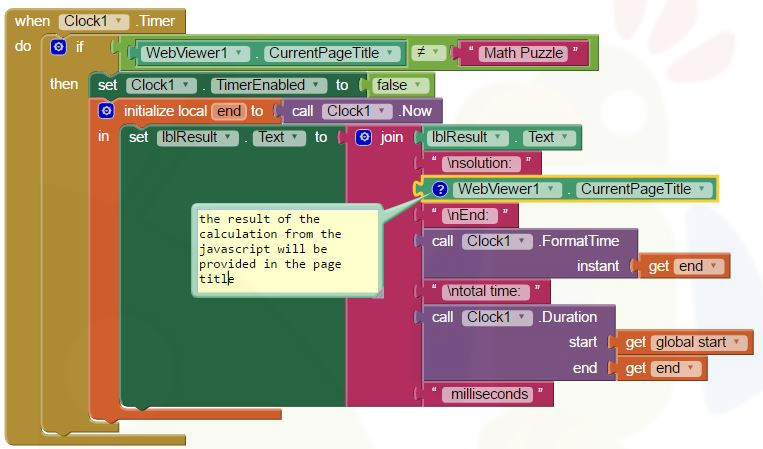

App Inventor Blocks



For questions about App Inventor,
please ask in the App Inventor community.Thank you.

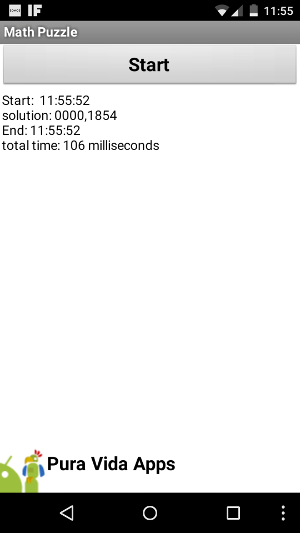

Screenshot


HTML/JavaScript

<!DOCTYPE html>
<html>
  <meta name="author" content="puravidaapps.com">
  <meta charset="utf-8">
  <meta name="viewport" content="width=device-width, initial-scale=1">
  <title>Math Puzzle</title>
</head>

<body>
  <script>
    var intCounter = 0;
    var strResult  = '';

    while (intCounter <= 9999) {
      intDigit = 10000 + intCounter;

      // this is a 4 digit string with leading zeros
      strDigit = intDigit.toString().substr(1, 4);

      // these are the individual digits
      a = parseInt(strDigit.substr(0, 1));
      b = parseInt(strDigit.substr(1, 1));
      c = parseInt(strDigit.substr(2, 1));
      d = parseInt(strDigit.substr(3, 1));

      // these are the rules
      if ((a + b == c + d) && (a + d == c) && (b + d == 2 * (a + c))) {
        strResult = strResult+strDigit + ',';
      }

      intCounter++;
    }
    // print the result to the page title, remove the last comma
    window.document.title= strResult.substr(0, strResult.length-1)
  </script>
</body>
</html>
