App Inventor Extensions


AES Encrypt/Decrypt Extension

See the App Inventor Extensions document about how to use an App Inventor Extension.

For questions about this extension, bug reports and feature requests, please start a new thread in the App Inventor Extensions forum. Thank you.

Mar 25th, 2016: Initial Version 1 uses AESCrypt-Android library

Aug 11th, 2016: Version 1a: avoid DX execution failed error: build each extension separately

Jan 27th, 2016: Version 2: now using library java-aes-crypto. Note: Version 2 is not compatible with Version 1!

Hashing vs. Encryption algorithms

There is a fundamental difference between Hashing and Encryption algorithms, see this stackoverflow answer: Hashing is one way. You can not get your data/string from a hash code. Encryption is 2 way - you can decrypt again the encrypted string if you have the key with you.
In case you are interested in Hashing, for example to create a password hash, see my Tools Extension.

Description

Extension to encrypt/decrypt strings.
Required permissions: none

This extension uses the java-aes-crypto library. Thank you tozny.com!
"A simple Android class for encrypting & decrypting strings, aiming to avoid serious cryptographic errors that most such classes suffer from."

Algorithm & Mode: Tozny.com chose: AES 128, CBC, and PKCS5 padding. For details, see here.

Methods


Generate Salt.


Encrypt.


Decrypt.

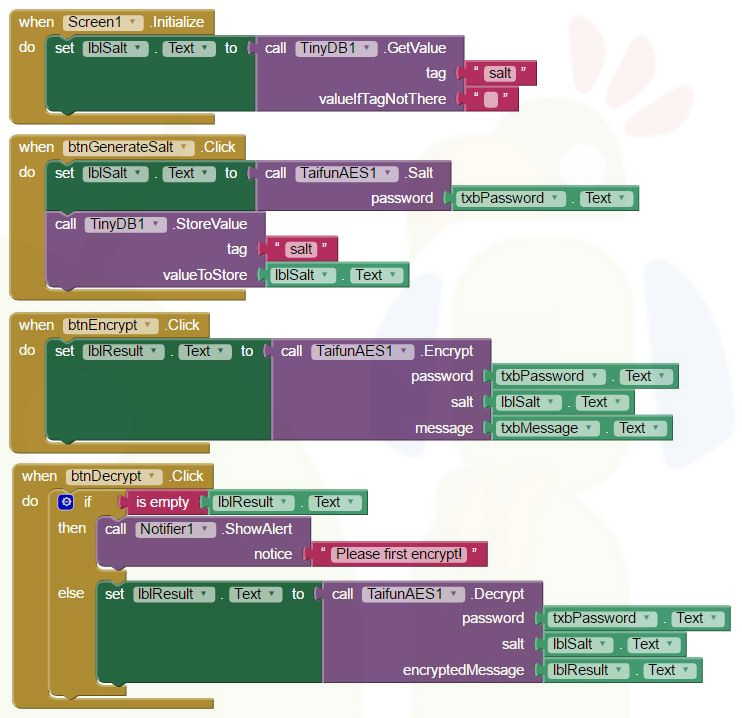

Example Use


generate salt

encrypt

decrypt

Questions and Answers

Q1: If I use the extension in a Play Store app, can someone identify and extract the password from the .apk by decompiling?
A: Usually you only store the salt inside your app. You might want to use TinyDB for that. Then you can use the password together with the stored salt to generate the key to encrypt/decrypt the data. Please be aware that if you store the password and salt in the same place that you store the encrypted data, your solution is not cryptographically sound since the attacker can just get both the key and the encrypted text. Instead, you should consider generating the key from a password/passphrase and using that to encrypt the user data. In case you really have to store the password inside the app, then at least use the Obfuscated text block from the text drawer to store the password to have some additional security, you can also follow this Security Recommendation (valid for In App Billing, but generally a good idea): It is highly recommended that you do not hard-code the exact public license key string value as provided by Google Play. Instead, you can construct the whole public license key string at runtime from substrings, or retrieve it from an encrypted store, before passing it to the constructor. This approach makes it more difficult for malicious third-parties to modify the public license key string in your APK file.

Q2: Do you know where I can find a web site that will encrypt or decrypt something according to your algorithm? I need to receive data on a server written in delphi, and what I found did not encrypt the same.
A: This extension uses the java-aes-crypto library from tozny.com. You might want to ask the security experts at tozny.com. Let us know, what you find out. Thank you.

Do you need help with your App Inventor project?

I can help you: for one hour I charge 25 USD.
Please contact me at info [at] puravidaapps [dot] com for details!
For questions about App Inventor, please use the App Inventor forum. Thank you.

Test the functionality of the AES extension

The test app is available in Google Play for Beta testers. You can test the example following these steps

  1. Join the Taifun Test Google+ Group to be able to test the example app
  2. Then follow the opt-in URL to get access to the app and to be able to download it to your device. It might take a few hours for Google to enable you as beta tester!
  3. Start testing.

Buy the AES extension for App Inventor


You can buy this extension (aix file).
With your payment you accept the terms and conditions below.

Payment options

1. Paypal

Please transfer 10 USD via Paypal
to Pura Vida Apps

2. Bitcoin

After having received your payment I will be happy to send the extension (aix file) to you.
Thank you! Taifun


Please check your spam folder in case you did not receive the extension!
I usually will send the extension not later than 24 hours after having received your payment.



Terms and Conditions
